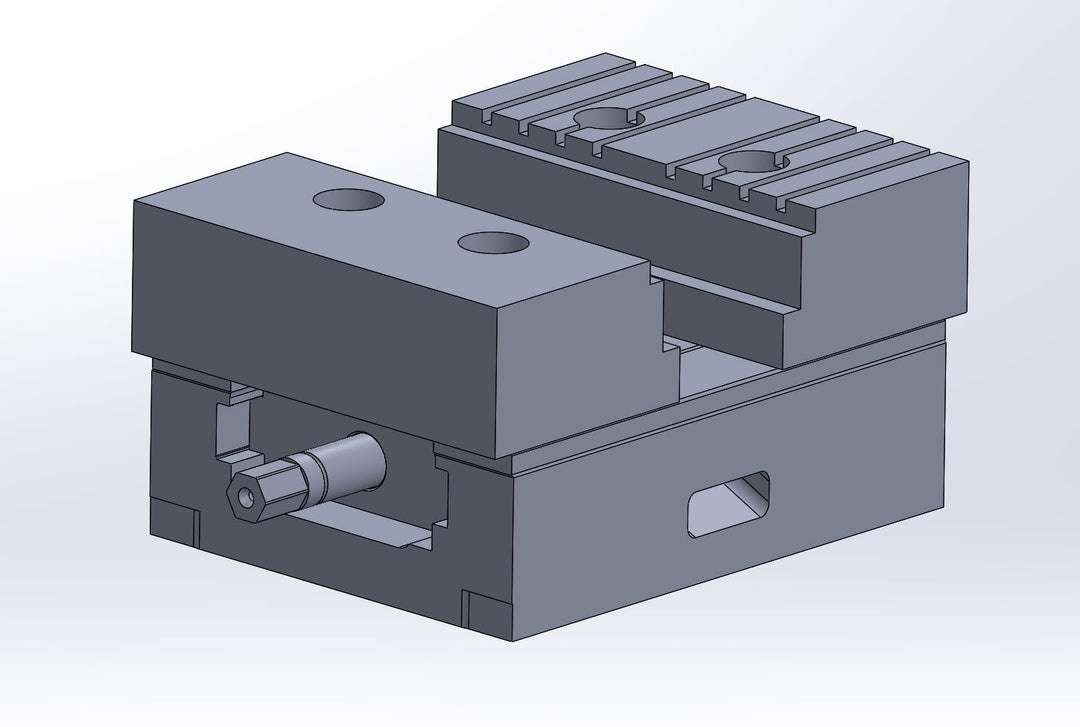

Designed for Schunk KSC 125-160 Vise

Material: High-quality 6061 Aluminum.

Design: Stepped workholding soft jaw with Pin stop Locator slot for machined parts.

Locating: Precision Locating Feature: Ensures exact re-positioning, for re-use of soft jaws.

Attachment: Each jaw comes equipped with two 8mm socket head cap screws for secure and easy attachment to the Schunk KSC 125-160 vise. Equipped with two 8mm socket head cap screws per jaw for firm attachment to the vise.

Application: Ideal for raw stock or second operation workholding with rectangular stock or workpiece, allows for clamping without damaging the workpiece

Step Feature: This all-around jaw offers versatility in that each jaw includes a .20" wide x .25" deep step for shallow part holding and a .25” wide x 1.0” deep slot for parts requiring a deeper group with more surface area clamping.

Precision Part Locating: Features pin slots compatible with a .125" dowel pin, acting as a hard stop for precise workpiece location. Tap a standard dowel pin down into the slot and it will be retained by a slight press fit.

Use Case: Reduce Setup Time for workholding tasks requiring speed and precision, enhancing the functionality of the Schunk KSC 125-160 vise.
